DRIP IRRIGATION SYSTEM

We are instrumental in offering durable range of Drip Irrigation System that helps in saving water & fertilizer by allowing water to drip slowly to roots of plants. These systems are also termed as trickle irrigation or micro irrigation system and are used for allowing water to fall onto the soil surface or directly to the root zone, through network of valves, pipes, tubing and emitters. Competitively priced, our controlled deep irrigation system offers best water management solutions to the farmers for cultivated land.

Drip Irrigation System

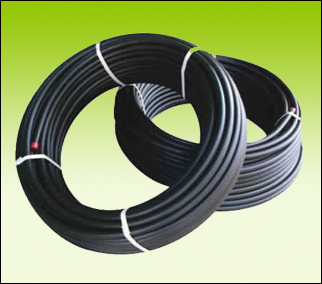

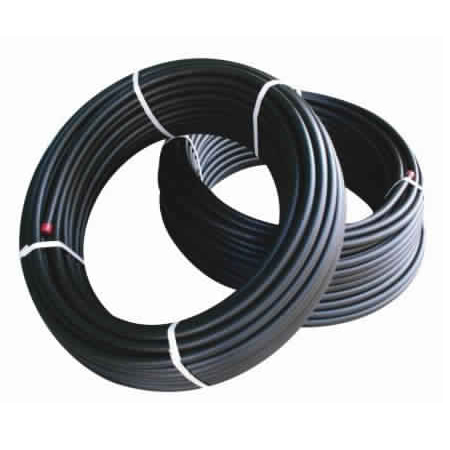

Irrigation Lateral Pipe

Mohit Polytech Pvt. Ltd. Introduces inline & online emitting pipe system for better irrigation of plants at very low cost and with scarce of water. Irrigation Lateral Pipe confirms to India Standards as per IS: 13487, IS :12786 This is an integral pipe system (in-built) in which the emitters are inserted in the laterals during the extrusion process at preset distances. Company has also introduced mini sprinkler for use in vegetable.

Salient Features:

High clog resistant emitter designed with a unique wide turbulent flow path.
Large surface inlet screen orifice.
Two orifice outlets placed 180° apart at each dripper end.
The additional outlet reduces the suction hazard from sand particles when the laterals are drained.
Easy to roll and unroll during inter cultivating operations, thus reduces chances of mechanical damage without losing dripper.
Uniform emission rate along the lateral.
Available in wide range of emitter spacing from 20 to 150 cm as per customer’s need.

Installation

Quick and easy to install just unroll and lay lateral to reduce time and cost.
No need punching the drippers on the lateral.
Can easily be connected to the PVC/HDPE pipe by means of head connector.

Specification

Manufactured in class 1, 2, 3, pressure ratings with different emission rates.

Recommendations :

 Maximum Recommended drip line length in meter on flat terrain at a pressure of 1 kg/cm2 diameter 12 mm & 16 mm.

Dripper       Spacing
(mm)                                                        20      30      40      50      60      75      90     100      150
Maximum    16mm        2LPH                  40      62      72      89      102    116    127   146      188
Extendable  16mm        4LPH                  25      35      44      52      59      70      78      85      111
Lateral         12mm        2LPH                  22      31      38      46      53      63      71      77      103
Length

Operating Range:

Working Pressure Range: 0.7 kg/cm2 to 2.25 kg/cm2

Application:

All Field crops like sugarcane, cotton, strawberry, grapes, carnations, floriculture, banana, pineapple, vegetable, tea gardens, green house etc.
